HILO 2 specyfikacja:

Sample Rates aż do 192 kHz using SynchcroLock sample clock generator
Synchronization Sources Internal /External word clock I/O: 75ohm TTL signal on BNC connectors AES/EBU or S/PDIF inputs
Computer Connectivity  LSlot™ Expansion Port ( USB, Thunderbolt , Dante)
Windows 64-bit drivers provided by Lynx
Macintosh macOS USB drivers provided by Apple
Macintosh macOS Thunderbolt drivers provided by Lynx
Supports Lynx LSlot expansion cards with up to 16 input and outputs simultaneously
LCD Display - 480 x 272 LCD Touch Screen
Line In/Out



Line in L/R (Preliminary)
THD+N: -116dB @ 1kHz, 20kHz filter, +22dBu trim
Dynamic range: 122dB @ A-weighted, -60dBFS signal method
Frequency response: ±0.01dB, 20–20kHz
Crosstalk: -140dB maximum @ 1kHz, -1dBFS signal
Full-scale trim settings: +0dBV, +2dBV, +4dBV, +6dBV, +18dBu, +20dBu, +22dBu, +24dBu
Female XLR connectors

Line out L/R (Preliminary)
THD+N: -116dB @ 1kHz, 20kHz filter, +22dBu trim
Dynamic range: 122dB @ A-weighted, -60dBFS signal method
Frequency response: ±0.02dB, 20–20kHz
Crosstalk: -135dB maximum @ 1kHz, -1dBFS signal
Full-scale trim settings: +0dBV, +2dBV, +4dBV, +6dBV, +18dBu, +20dBu, +22dBu, +24dBu
Male XLR connectors

Digital In/Out

AES/EBU:
transformer-coupled on XLR connectors
S/PDIF I/O coax:
transformer-coupled on RCA jacks
S/PDIF I/O optical:
on optical connectors
ADAT I/O:
8 channels at 48 kHz when selected on optical connectors

Monitor/Headphone

Monitor out L/R
THD+N: -107dB @1kHz, -1dBFS, 20kHz filter, volume at max
Dynamic range: 121dB, A- weighted, -60dBFS signal method
Frequency response: ±0.02dB, 20-20kHz
Crosstalk: -135dB maximum @ 1kHz, -1dBFS signal
Output  level at max: +24dBu or +10dBu, jumper selectable
1/4" TRS connectors

Headphone out
THD+N: -107dB @1kHz, -1dBFS, 20kHz filter, volume at max
Dynamic range: 121dB, A-weighted, -60dBFS signal method
Frequency response: ±0.02dB, 20-20kHz
Crosstalk: -130dB maximum @ 1kHz, -1dBFS signal
Output level at max: +19dBu
1/4” headphone jack


Hilo

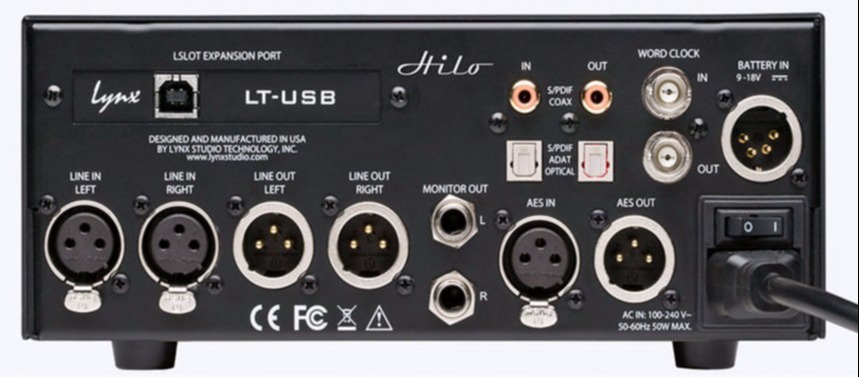

widok tylnej ścianki Hilo

Hilo Lynx back

Hilo Remote

wirtualny panel obsługi i miksowania dla Windows i OS

Hilo mixer
